…»”­UŠí Crystal Oscillators
Parts No. Appearance Dimension Frequency range Freq tolerance
@+25Ž
Freq stability
over temp.
Spec sheet
(PDF)
RoHs compliant
Pb Free

KCO-2520P
series

2.5 x 2.0 x
0.8mmH
1.8V:1.0`110.0MHz
2.5V:1.0`166.0MHz
3.3V:1.0`200.0MHz
}10ppm

}30ppm
}50ppm
}100ppm
/0 to +70C
/-40 to +85C

PDF RoHs Pb free

TCXO-75
series

  7.0 x 5.0 x
1.70mmH
10.000MHz
19.200MHz
19.440MHz
20.000MHz
26.000MHz
}0.5ppm

}0.1ppm/0 to +70C

PDF RoHs Pb free
VC-TCXO-85
series
5.0 x 3.2 x
1.50mmH
10 MHz`52.5 MHz }0.5ppm

}0.2ppm/-40 to +85C

PDF RoHs Pb free
Spread Spectrum Crystal Oscilltor
KCO-532SS
series
5.0 x 3.2 x
1.05mmH
1 MHz`200 MHz }50ppm }50,100ppm/
-20 to +75Ž
PDF RoHs Pb free
Spread Spectrum Crystal Oscilltor
KCO-7050SS
series
7.0 x 5.0 x
1.5mmH
1 MHz`200 MHz }50ppm }50,100ppm/
-20 to +75Ž
PDF RoHs Pb free
KCO-252
series
2.5 x 2.0 x
0.8mmH
1 MHz`75 MHz }10ppm }25, 30, 50,
100ppm/
0 to +70Ž
PDF RoHs Pb free
KCO-325
series
3.0x2.5x
0.9mmH
1 MHz`80 MHz }10ppm }25, 30, 50,
100ppm/
0 to +70Ž
PDF RoHs Pb free
KCO-327K
series
6.5x4.0x
2.0mmH
32.768 KHz +30 to 0ppm +30ppm to -60/
-10 to +60Ž
PDF RoHs Pb free
KCO-427K
series
4.0x2.5x
1.0mmH
32.768 KHz +5}20ppm -120ppm to +10/
20 to +70Ž
PDF RoHs Pb free
KCO-532
series
5.0x3.2x
1.0mmH
0.5 MHz`125 MHz }10ppm }25, 30, 50,
100ppm/
0 to +70Ž
PDF RoHs Pb free
KCO-715
series
7.0x5.0x
1.6mmH
1 MHz`70 MHz }10ppm }25, 30, 50,
100ppm/
0 to +70Ž
PDF RoHs Pb free
KCO-718
series
7.0x5.0x
1.6mmH
1 MHz`167 MHz }10ppm }25, 30, 50,
100ppm/
0 to +70Ž
PDF RoHs Pb free
KCO-800P
series
7.0x5.0x
1.6mmH
1 MHz`200 MHz
(Programmable)
}20ppm }30, 50, 100ppm/
-0 to +70Ž
PDF RoHs Pb free
KCO-835
series
13.0x9.8x
4.7mmH
1 MHz`70 MHz }10ppm }25, 50, 100ppm/
0 to +70Ž
PDF RoHs Pb free
KCO-935
series
14.0x9.8x
4.7mmH
1 MHz`80 MHz }10ppm }30, 50, 100ppm/
0 to +70Ž
PDF RoHs Pb free
KCO-970
series
7.0x5.0x
1.8mmH
100 MHz`400 MHz
(LVPECL)
}10ppm }25, 50, 100ppm/
0 to +70Ž
PDF RoHs Pb free
KCO-990
series
7.0x5.0x
1.8mmH
100 MHz`400 MHz
(LVDS)
}10ppm }25, 50, 100ppm/
0 to +70Ž
PDF RoHs Pb free
(VC)TCXO-01
series
18.3x11.7x
4.3mmH
5 MHz`54 MHz
(Square wave or
clipped since wave)
}1.0ppm }2.5ppm/
-30 to +75Ž
PDF RoHs Pb free
(VC)TCXO-02
series
11.4x9.6x
3.4mmH
10 MHz`54 MHz }1.0ppm }2.5ppm/
-30 to +75Ž
PDF RoHs Pb free
(VC)TCXO-05
series
9.0x7.0x
2.0mmH
12.6 MHz`19.8 MHz }1.0ppm +2.5ppm/
-20 to +70Ž
PDF RoHs Pb free
(VC)TCXO-64
series
11.4.x9.6x
2.3mmH
10 MHz`19.2 MH }1.0ppm }2.5ppm/
-30 to +75Ž
PDF RoHs Pb free
(VC)TCXO-66
series
11.4x9.6x
2.3mmH
10 MHz`19.2 MHz }1.0ppm }2.5ppm/
-30 to +75Ž
PDF RoHs Pb free
(VC)TCXO-71
series
7.0x5.0x
1.9mmH
10 MHz`26 MHz }1.0ppm }2.5ppm/
-30 to 75Ž
PDF RoHs Pb free
(VC)TCXO-81
series
5.0x3.2x
1.5mmH
10 MHz`26 MHz }1.0ppm }2.5pm/
-30 to +75Ž
PDF RoHs Pb free
(VC)TCXO-83
series
5.0x3.2x
1.25mmH
10 MHz`40 MHz }1.0ppm }2.5ppm/
-30 to +75Ž
PDF RoHs Pb free
(VC)TCXO-93
series
3.2x2.5x
1.0mmH
13 MHz`40 MHz }1.0ppm }2.5ppm/
-30 to +75Ž
PDF RoHs Pb free
(VC)TCXO-120
series
7.0x5.0x
2.0mmH
13 MHz`50 MHz
(HCMOS/Square wave)
}1.0ppm }2.5ppm/
-30 to +75Ž
PDF RoHs Pb free
VCXO-200
series
7.0 x 5.0 x
1.6mmH
10 MHz`150 MHz
(HCMOS)
}100ppm }50ppm/
0 to +70Ž
PDF RoHs Pb free
VCXO-300
series
7.0x5.0x
1.6mmH
77 MHz`160 MHz
(LVPECL)
}100ppm }50ppm/
0 to +70Ž
PDF RoHs Pb free
VCXO-532
series
5.0x3.2x
1.3mmH
10 MHz`50 MHz }90ppm +50ppm/
0 to +70Ž
PDF RoHs Pb free
TCXO-705C
series
7.0x5.0x
1.5mmH
4.0 MHz`54 MHz }1ppm +2.5ppm/
-30 to +75Ž
PDF RoHs Pb free
TCXO-532C
series
5.0x3.2x
1.05mmH
4.0 MHz`54 MHz }1ppm +2.5ppm/
-30 to +75Ž
PDF RoHs Pb free

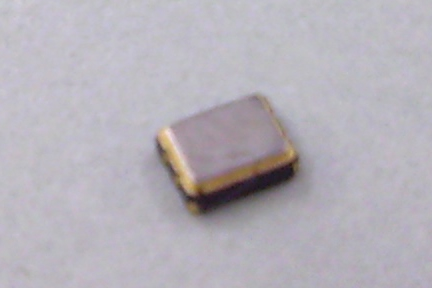

TCXO-325C
series
3.2x2.5x
1.0mmH
4.0 MHz`54 MHz }1ppm +2.5ppm/
-30 to +75Ž
PDF RoHs Pb free
TCXO-252C
series
2.5x2.0x
0.9mmH
4.0 MHz`54 MHz }1ppm +2.5ppm/
-30to +75Ž
PDF RoHs Pb free
KCO-7050SS
series
7.0x5.0x
1.50mmH
1.0 MHz`200 MHz }100ppm +100ppm/
-20to +75Ž
PDF RoHs Pb free
KCO-5032SS
series
5.0x3.2x
1.05mmH
1.0 MHz`200 MHz }100ppm +100ppm/
-20to +75Ž
PDF RoHs Pb free
KCO-3215K
series
3.2x2.5x
0.9mmH
32.768 KHz }20ppm -90 to+10 ppm/
-20to +75Ž
PDF RoHs Pb free
